Do Whop Whop! The Mighty CH-47 Chinook Helicopter

The logistics of the Vietnam War required constant resupply of ammunition, fuel, medical supplies, and other essentials. The Chinook’s cargo space and external hooks made it invaluable in this role.

September 23, 2024

The CH-47 Chinook

The CH-47 Chinook is a tandem-rotor, heavy-lift helicopter designed by Boeing Vertol (initially developed by Vertol Aircraft Corporation) and introduced in the early 1960s. Its distinct design features two horizontally mounted main rotors, each rotating in opposite directions, giving it immense stability, payload capacity, and versatility in difficult flight environments. This helicopter has become one of the most enduring and iconic transport aircraft in military history, seeing service from the Vietnam War to present-day operations worldwide.


Design and Technical Features

1. Tandem Rotor Configuration:

   The CH-47 Chinook has two large, counter-rotating rotors that eliminate the need for a tail rotor. This design choice offers multiple advantages:

   - Lift and Stability: The tandem design creates a balanced and stable platform. Each rotor provides half of the lift, and the forward and aft rotors work together, enabling the Chinook to carry heavy loads without excessive stress on any one point.

   - Increased Payload: By forgoing the tail rotor, the Chinook can use all available engine power for lift and forward flight, greatly enhancing its payload capabilities.

2. Engines:

   - The early versions of the CH-47 were powered by twin Lycoming T55-L-5 turboshaft engines, which were progressively upgraded throughout its operational life. The CH-47D and later models utilize the more powerful T55-GA-714A engines, allowing for an increased payload of over 28,000 lbs (12,700 kg).

   - These engines are mounted on either side of the fuselage, close to the rear rotor assembly, maximizing space and balance.

3. Fuselage and Structure:

   - The Chinook's long and cylindrical fuselage is made of aluminum alloy, optimized for durability and light weight. It’s built to house cargo, personnel, or equipment, and is equipped with a rear ramp for easy loading and unloading.

   - The fuselage measures approximately 51 feet (15.54 meters) long and 12.5 feet (3.8 meters) wide, providing ample space for a variety of missions, including troop transport, artillery movement, and cargo logistics.

   - The cabin can accommodate up to 33-55 fully equipped troops or large equipment such as vehicles and artillery pieces.

4. Flight Characteristics:

   - The CH-47’s top speed is around 170 knots (196 mph or 315 km/h), making it one of the fastest helicopters in the U.S. military’s arsenal. Its range with external fuel tanks is around 1,200 nautical miles (2,222 km).

   - The tandem rotor system gives the Chinook exceptional stability in flight and hover, and its performance is particularly notable in high-altitude and high-temperature environments where many helicopters struggle.


6. Cargo Systems:   Internally, the Chinook has a versatile configuration for transporting personnel and cargo. It has tie-down points for securing equipment and provisions.

It also has three external cargo hooks for slinging loads underneath. The center and aft hooks are particularly useful for carrying large loads like artillery pieces, military vehicles, or shipping containers. In some instances, it can even carry multiple loads at once, separated by different hooks.

7. Advanced Avionics (Post-Vietnam Models):

   - Starting with the CH-47D and continuing with the CH-47F, the Chinook has been equipped with advanced avionics, including GPS-based navigation, digital flight control systems, and mission management systems. The CH-47F features a fully integrated, digital cockpit management system to enhance crew situational awareness.

8. Defensive Systems:

   - The Chinook has provisions for machine guns (typically M240s or M60s) mounted on side doors and windows for self-defense during transport missions.

   - It also incorporates advanced defensive systems, including radar warning receivers, infrared countermeasures, and flare dispensers to thwart missile threats.


Role in the Vietnam War

The CH-47 Chinook played a pivotal role in the Vietnam War (1955-1975). It was one of the most vital assets in the U.S. military’s air mobility operations during this conflict, often used in the following capacities:

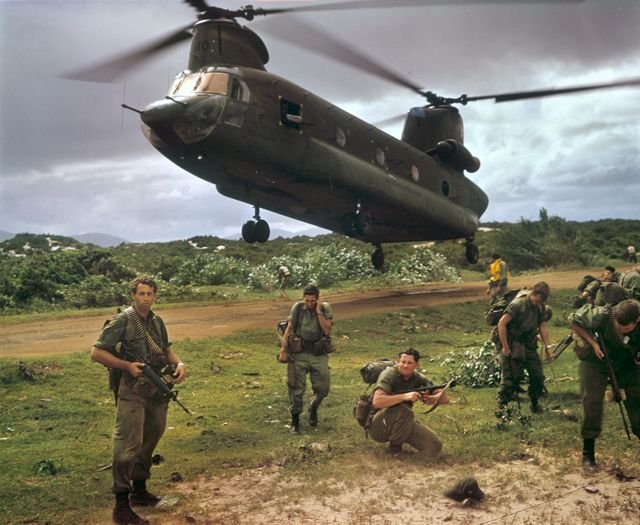

1. Troop Transport:

   The Chinook transported large numbers of soldiers into and out of combat zones. Its ability to carry up to 55 fully equipped troops made it an ideal platform for moving infantry quickly in the difficult terrain of Vietnam. The jungle-covered mountains and dense forests made traditional transport by road nearly impossible.

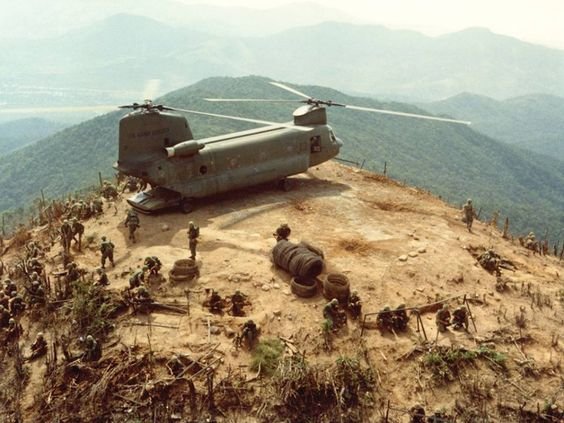

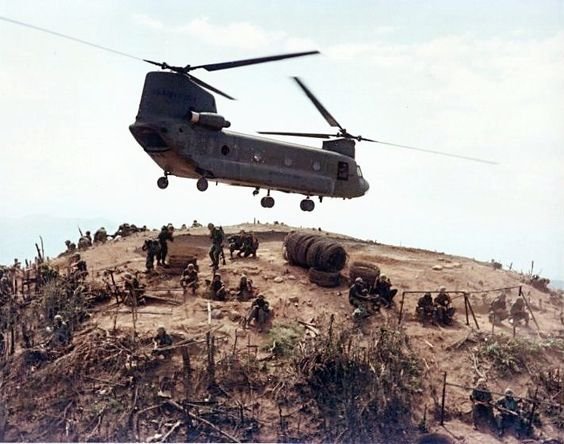

2. Supply and Equipment Transport:

   The logistics of the Vietnam War required constant resupply of ammunition, fuel, medical supplies, and other essentials. The Chinook’s cargo space and external hooks made it invaluable in this role. It carried everything from artillery pieces to ammunition crates into forward operating bases that were otherwise inaccessible due to terrain or enemy presence.

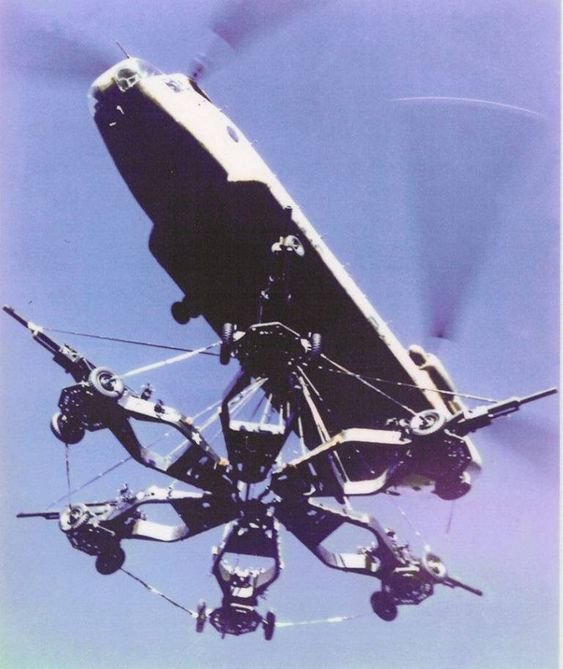

3. Artillery Deployment:

   One of the more specialized roles of the Chinook in Vietnam was its use in the rapid deployment and relocation of artillery. The Chinook’s ability to lift and carry 155 mm howitzers made it possible to provide mobile fire support to infantry in remote locations. This capability allowed the U.S. forces to reposition firepower based on the shifting dynamics of battle, a significant tactical advantage.

4. Casualty Evacuation (CASEVAC):

   The Chinook was also used in medical evacuation operations, ferrying wounded soldiers from the battlefield to hospitals. Its spacious cabin could be configured to carry litters and medical teams, and its relatively fast speed helped ensure that wounded personnel received prompt medical care.

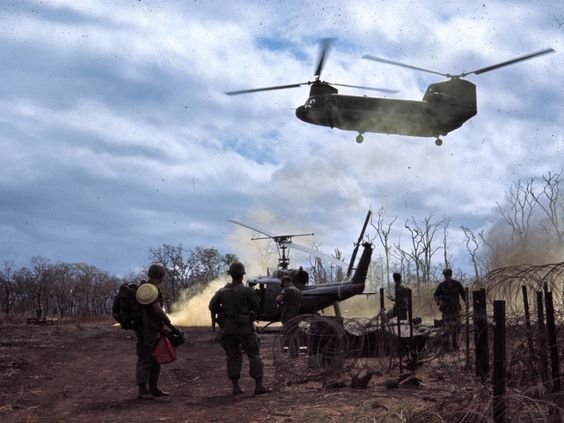

5. Recovery and Salvage Operations:

   The Chinook was heavily involved in retrieving downed helicopters and damaged vehicles from combat zones, using its external cargo hooks to airlift the equipment back to bases for repairs. This capability allowed the U.S. military to maintain its operational strength and save critical assets that would otherwise be lost.

6. Strategic Advantages:

   - The mobility and flexibility provided by the Chinook allowed U.S. forces to engage in aerial warfare and rapid deployments in an unconventional theater like Vietnam, where ground mobility was severely restricted by jungles, mountains, and waterways.

   - The ability to move artillery, heavy vehicles, and large numbers of troops at once played a crucial role in missions like the famous Siege of Khe Sanh, where the Chinook helped sustain isolated forces.


The CH-47 Chinook’s tandem rotor design, massive payload capabilities, and versatility have made it one of the most successful helicopters in history. From its debut in the Vietnam War to its continued service in conflicts around the world, the Chinook has been an essential tool for military and humanitarian missions alike. With ongoing modernization, it will continue to serve in crucial roles for decades to come

The CH-47 Chinook played a crucial role in several major combat operations during the Vietnam War, providing unparalleled air mobility and heavy-lift support in difficult terrain and hostile environments. One of its most significant contributions was during **Operation Junction City** in 1967, where the Chinook transported large numbers of troops into enemy territory, deployed heavy artillery, and resupplied isolated units. Its ability to lift and position howitzers in remote firebases provided essential fire support for infantry operations. Similarly, during the **Siege of Khe Sanh** in 1968, the Chinook was a lifeline for the surrounded U.S. Marines, supplying the base with food, ammunition, and medical supplies, often under heavy enemy fire. It also evacuated wounded personnel, ensuring they received medical care despite the dangerous conditions.

The helicopter's heavy-lift capabilities were also critical in the **Battle of Dak To** in 1967, where it airlifted troops and artillery into the Central Highlands, a region known for its dense jungles and rugged mountains. The Chinook's ability to reposition artillery allowed U.S. forces to maintain superior firepower against North Vietnamese forces. In **Operation Delaware** in 1968, the Chinook was again central to logistics, moving troops, vehicles, and supplies into the heavily fortified A Shau Valley, where ground transport was impossible. Despite the intense anti-aircraft fire, the Chinook was vital in recovering downed helicopters and salvaging equipment.

One of the most challenging operations for the Chinook was Operation Lam Son 719 in 1971, an ARVN offensive in Laos aimed at cutting the Ho Chi Minh Trail. The Chinook transported troops deep into enemy territory, deployed artillery in forward positions, and extracted large amounts of equipment and personnel during the eventual retreat. Though the operation faced heavy resistance and logistical challenges, the Chinook’s ability to quickly evacuate forces under fire helped prevent even greater losses. Throughout the Vietnam War, the Chinook revolutionized combat logistics, enabling rapid troop movements, artillery deployment, and resupply in terrain where ground-based transport was impractical. Its versatility and heavy-lift capacity made it an indispensable asset in air mobility operations, solidifying its reputation as a key tool for U.S. forces in Vietnam.

The Gunship

The idea of converting the CH-47 Chinook into a gunship emerged during the Vietnam War, leveraging its heavy-lift capacity, stability, and range to create a heavily armed helicopter capable of providing close air support. While the Chinook is primarily known as a cargo and transport helicopter, several experimental attempts were made to arm it with powerful weapons systems, creating what became known as the ACH-47A "Guns-A-Go-Go" variant. These gunships were developed to offer additional firepower in direct combat zones, especially in areas where ground forces required close air support and artillery cover.

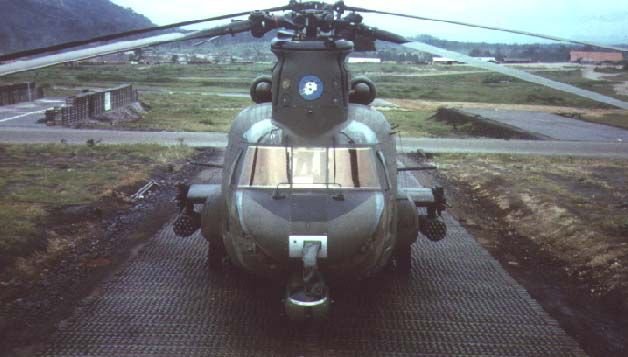

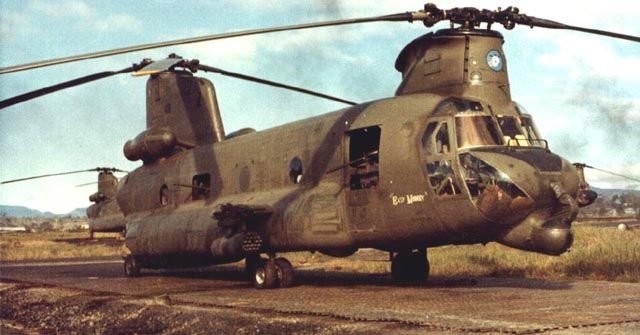

Development of the ACH-47A "Guns-A-Go-Go"

In the mid-1960s, the U.S. Army recognized the need for a heavily armed helicopter that could deliver massive firepower while still maintaining the mobility of an air transport platform. The ACH-47A (Armored CH-47) was a modified version of the Chinook, designed to perform the role of a heavily armed assault helicopter. Four CH-47A Chinooks were converted into these gunships, and the first flew in 1965. The ACH-47A was designed to complement the lighter UH-1 Huey gunships by offering a larger payload capacity and more powerful weapons.

Armament and Features

The ACH-47A was equipped with an array of heavy weapons, making it one of the most heavily armed helicopters of its time:

- M75 40 mm automatic grenade launcher mounted on the chin turret, delivering rapid-fire grenades over a wide area, ideal for attacking enemy infantry and fortifications.

- .50 caliber machine guns mounted on the sides for suppressive fire, protecting the helicopter during troop insertions and extractions.

- M60D 7.62 mm machine guns positioned in the rear of the helicopter and manned by door gunners for defense and additional firepower.

- 2.75-inch rocket pods mounted on the sides of the aircraft, offering the ability to launch unguided rockets against enemy positions, armor, or structures.

- Miniguns mounted in the rear and sides for continuous fire at high rates of speed, providing suppressive fire during operations.

This arsenal gave the ACH-47A the ability to deliver concentrated firepower over large areas, providing essential support during infantry assaults and defending troops under attack.

 Role in Combat

The ACH-47A "Guns-A-Go-Go" was intended to serve multiple combat roles, including close air support for ground troops, armed escort for troop transport helicopters, and direct engagement of enemy forces. The Chinook's tandem rotor configuration made it exceptionally stable in flight, allowing it to hover while engaging targets with its powerful weapons systems. It could also loiter over the battlefield for extended periods, providing continuous fire support to friendly forces.

During operations in Vietnam, the ACH-47A was used to escort troop transports, suppress enemy positions, and deliver heavy firepower in support of U.S. ground forces. Its ability to carry large quantities of ammunition meant it could sustain longer engagements than the lighter gunships like the UH-1. The combination of machine guns, cannons, rockets, and grenade launchers made the ACH-47A particularly effective in attacking enemy bunkers, infantry positions, and vehicle convoys.

Challenges and Decline

Despite its impressive firepower, the ACH-47A program faced several challenges:

- Vulnerability: The Chinook’s large size made it a prominent target for enemy anti-aircraft fire. Although the ACH-47A was armored, it was still susceptible to ground fire, particularly from heavy machine guns and rocket-propelled grenades (RPGs).

- Maintenance: The added weight from the armament and armor placed a significant strain on the airframe and engines. The ACH-47A required extensive maintenance to keep operational, and its complex systems were prone to mechanical issues in the challenging environment of Vietnam.

- Limited Numbers: Only four CH-47s were ever converted into ACH-47A gunships, and after the loss of several aircraft to enemy fire and accidents, the Army decided not to continue developing the gunship variant on a large scale. The surviving aircraft were eventually retired, and the concept of using the Chinook as a dedicated gunship was abandoned.

Legacy

Although the ACH-47A program was short-lived, the "Guns-A-Go-Go" gunships demonstrated the potential of converting heavy-lift helicopters into formidable aerial combat platforms. The concept of an armed Chinook faded after the Vietnam War, but its influence can be seen in later developments of armed helicopters and aerial gunships.

In modern military operations, while the Chinook continues to serve primarily as a heavy-lift transport helicopter, it is occasionally fitted with defensive armaments, such as M240 machine guns and .50 caliber weapons, to provide protection for the crew and cargo. However, the ACH-47A's role as a heavily armed gunship was never fully replaced by the Chinook, and lighter, more maneuverable helicopters like the AH-1 Cobra and later AH-64 Apache took over the dedicated gunship role.

Despite its brief operational history, the ACH-47A "Guns-A-Go-Go" remains a fascinating chapter in military aviation, demonstrating the versatility and potential of the Chinook in combat situations.

Evolution and Use of the CH-47 Beyond the Vietnam War:

   After Vietnam, the Chinook continued to evolve. The CH-47D, introduced in the 1980s, featured upgraded engines, an improved transmission system, and more advanced avionics. The CH-47D became the standard model for military transport missions throughout the 1980s and 1990s. This variant allowed the Chinook to lift heavier payloads, increasing its utility in both military and humanitarian operations.

2. Gulf War (1991):  During Operation Desert Stor, the CH-47 was used to transport troops and equipment across the desert environment. Its long-range capability and ability to carry large amounts of supplies made it invaluable during rapid advances into Iraqi territory.

3. Global War on Terror (2001-present):  The CH-47 Chinook became a workhorse during operations in **Afghanistan and Iraq**, where it played key roles in combat and resupply missions. In the mountainous regions of Afghanistan, the Chinook's high-altitude performance and heavy-lift capability proved essential for transporting troops and equipment to remote outposts. Additionally, it was used in large-scale troop insertions during operations like Anaconda in 2002 and Moshtarak in 2010.

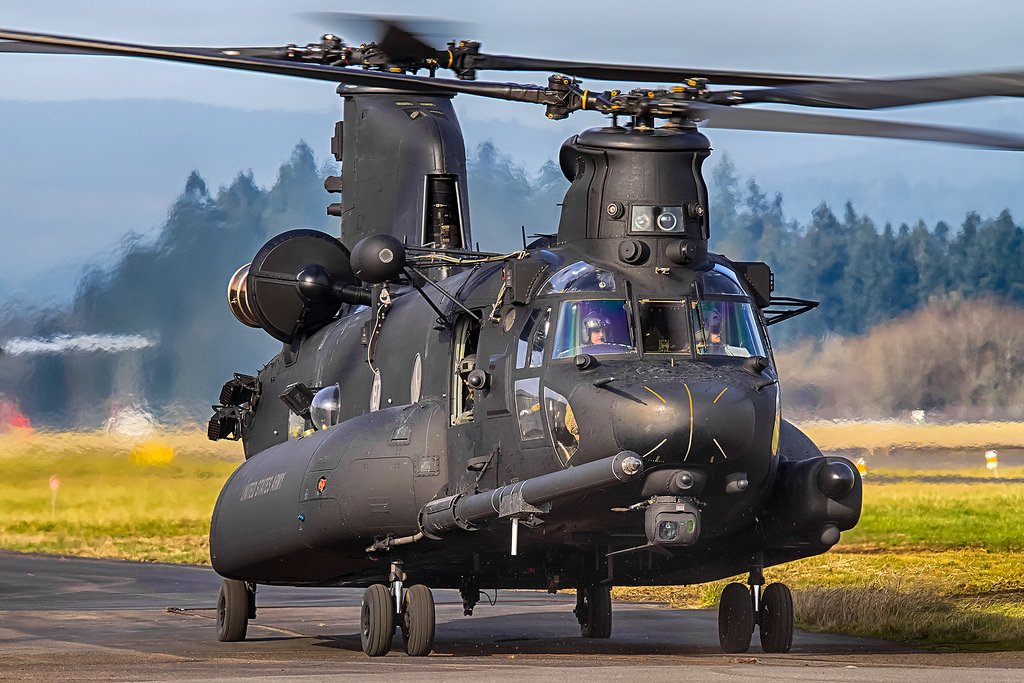

4. Special Operations: The MH-47 variant of the Chinook, used by U.S. Army Special Operations Command, has specialized equipment for night missions, long-range operations, and high-altitude insertions. These helicopters have been central to operations involving U.S. special forces, such as Navy SEALs and Army Rangers.

5. Humanitarian Aid: Beyond combat roles, the Chinook has been extensively used in disaster relief operations. Its large carrying capacity and ability to operate in harsh conditions made it a vital resource in humanitarian efforts following natural disasters, such as the earthquake in Haiti (2010) and tsunami relief in Japan (2011).

Ongoing Upgrades (CH-47F): The CH-47F model, introduced in the 2000s, represents the latest generation of Chinooks. It includes:

   - Digital cockpit systems with advanced navigation, communication, and control capabilities.

   - Composite rotor blades for improved lift efficiency.

   - Upgraded engines for even greater power, enabling the Chinook to carry heavier loads at higher altitudes and in hotter conditions.

   - It remains the backbone of U.S. Army heavy-lift helicopter capabilities, with plans for further modernization and service life extensions.
