Serial Number 63: A Rare Marine Corps Prototype Begins Its Return

The restoration of one of the rarest vehicles ever acquired by Ghosts of the Battlefield has now entered a major new phase.

When this unusual Chenowth-based vehicle first arrived, it was already clear that it was not an ordinary dune buggy. Its frame contained unusual brackets, welded mounting points, structural modifications, and traces of earlier paint that suggested a connection to a specialized military program. As research continued, documentation began to reveal the remarkable story behind it.

We now believe this vehicle is connected to the United States Marine Corps’ early experiments with remotely operated ground vehicles during the 1980s. These programs explored the possibility of sending an unmanned vehicle into dangerous terrain to perform reconnaissance, surveillance, target acquisition, and potentially weapons operations without placing a Marine directly in harm’s way.

Long before modern military drones became a familiar sight, engineers were already attempting to create machines that could extend the eyes, ears, and reach of American forces across the battlefield. The military’s experimentation with unmanned aircraft dated back decades, including early radio-controlled aircraft, target drones, and reconnaissance systems used during the Cold War and Vietnam. Ground vehicles, however, presented a completely different set of problems.

An unmanned aircraft could follow a planned route through open air. A ground vehicle had to cross rocks, mud, hills, vegetation, ditches, and other obstacles while providing the remote operator with enough information to understand the terrain around it. Engineers had to develop remote steering systems, cameras, directional audio, communications equipment, operator controls, and methods of creating a sense of presence for someone who was not physically inside the vehicle.

Research has connected the Chenowth platform to the Marine Corps’ Advanced Teleoperator Technology program conducted through the Naval Ocean Systems Center in Hawaii. The experimental vehicle was used to study high-speed remote driving over complex natural terrain. The program explored stereo visual displays, head-coupled viewing systems, binaural audio feedback, and controls designed to feel like those of a conventional vehicle. Documentation also records successful testing of remotely operated vehicle-mounted weapons.

These experiments helped lead to the larger Ground/Air TeleRobotic Systems program and the development of the TeleOperated Vehicle. Later systems carried increasingly advanced cameras, thermal imaging equipment, laser rangefinders, chemical detection systems, and other reconnaissance technology. Although primitive by modern standards, the ideas being tested were revolutionary.

This vehicle belongs near the beginning of the technological family tree that eventually produced the unmanned systems used by the American military today. Modern explosive ordnance disposal robots, reconnaissance vehicles, robotic supply carriers, autonomous convoy vehicles, and armed unmanned ground systems all rely upon concepts that early programs such as this helped prove were possible.

That history makes the survival of this vehicle especially important.

Experimental vehicles are rarely produced in large numbers. Once testing ends, prototypes are often dismantled, discarded, modified beyond recognition, or left outside until little remains. Unlike standard military vehicles manufactured by the thousands, developmental machines may exist only as a small group. When one survives, it provides a physical connection to a technological story that might otherwise exist only in photographs and technical reports.

As rare as our fully restored Fast Attack Vehicle is, this new project may prove to be even rarer. Our FAV is already one of the crown jewels of the Ghosts of the Battlefield vehicle collection. It represents the speed-over-armor philosophy adopted by American special operations forces during the final years of the Cold War and the era of Operation Desert Storm. Few original examples remain, and even fewer have been completely restored.

This Chenowth prototype appears to come from an even smaller and more obscure group of vehicles.

It is now the tenth military vehicle undergoing restoration for the Ghosts of the Battlefield museum. Reaching that number represents years of work, research, fundraising, mechanical labor, and determination. Restoring a military vehicle is never as simple as applying paint and placing it on display. Every project begins with disassembly, documentation, cleaning, inspection, historical research, and the difficult search for missing or damaged parts.

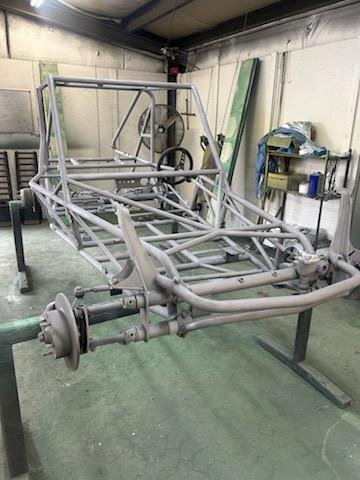

The restoration of this vehicle began with the complete stripping of the frame. Decades of dirt, corrosion, paint, and accumulated material had to be removed before its true condition could be evaluated. Every bracket, mounting point, weld, and alteration was examined and documented before the surface was cleaned.

The frame was then sandblasted, removing the remaining corrosion and old finish while exposing the original metal beneath. This was an important step, not only mechanically but historically. Sandblasting revealed details that had been hidden for years and allowed us to begin separating original military modifications from later repairs and alterations.

During that process, one of the most important discoveries of the restoration was made.

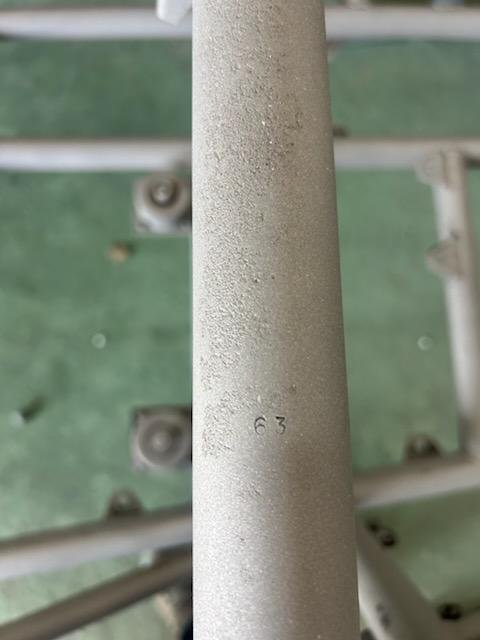

A serial number was uncovered on the frame: 63.

At this time, we are continuing to investigate exactly what the number represents. It may be a Chenowth chassis serial number, a manufacturing number, a military property identifier, or a number applied during the vehicle’s experimental service. It would be premature to claim that it means sixty-three vehicles were manufactured. However, it gives us a solid identifying mark that may eventually be compared with factory records, government inventories, archival photographs, surviving vehicles, or program documentation.

The discovery of the serial number is precisely why careful restoration matters. Had the frame simply been covered with another layer of paint, that important clue might have remained hidden. Restoration is often a form of industrial archaeology. Numbers, welds, layers of paint, drilled holes, and seemingly insignificant brackets can reveal where a vehicle came from and what happened to it during its service life.

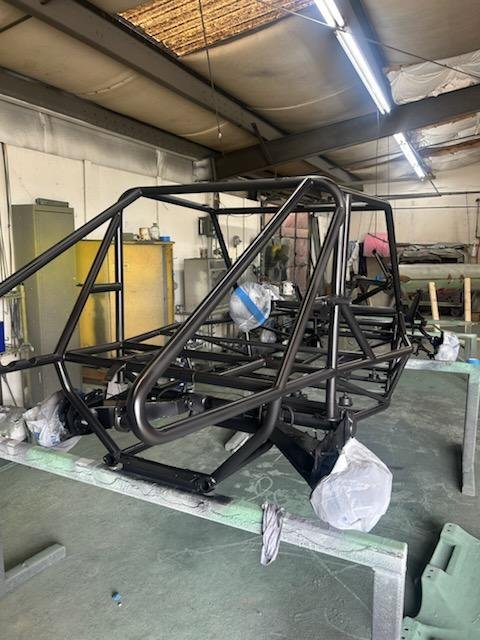

After cleaning and sandblasting, the frame was inspected and repainted in the correct black finish. Seeing the restored frame in its proper color marked the first moment when the vehicle truly began to look as though it was returning from decades of neglect.

This is only the foundation, but it is a major one.

Parts are now on order, and the project is moving forward. Each replacement component must be selected carefully. Whenever possible, original or period-correct parts will be located and used. When original components cannot be found, suitable replacements must be researched and adapted without erasing the historical evidence that remains on the vehicle.

The mechanical systems will be rebuilt, the suspension and steering restored, and the vehicle gradually returned to complete form. At the same time, research will continue into its original remote-control equipment, sensor mast, cameras, communications systems, and other specialized components.

A complete restoration will be a long process. Some pieces may be nearly impossible to find. Others may have to be recreated using period photographs, measurements, technical reports, and comparisons with surviving examples. The goal is not merely to make the vehicle run or look impressive. The goal is to return it as closely as possible to the configuration that made it historically significant.

We want visitors to understand that they are not simply looking at a dune buggy.

They are looking at an early attempt to remove a Marine from danger by sending a machine in his place.

They are looking at a vehicle developed when cameras were bulky, computers were limited, communications were difficult, and the idea of remotely operating a fast-moving vehicle across rough terrain seemed almost futuristic.

They are looking at one of the ancestors of the robotic systems now seen across the modern battlefield.

Military museums naturally preserve the vehicles that fought America’s wars. Tanks, trucks, aircraft, and artillery pieces often become symbols of the conflicts in which they served. Experimental vehicles tell a different kind of story. They preserve the moment when engineers, Marines, and military planners began asking what warfare might look like in the future.

More than forty years later, that future has arrived.

Unmanned systems now fly above battlefields, search buildings, examine suspicious objects, carry supplies, scout enemy positions, and perform missions that would once have required a serviceman to risk his life. The technology has advanced enormously, but the basic idea remains the same.

Send the machine where the danger is greatest.

The freshly restored black frame of serial number 63 is now the starting point for bringing that story back to life. The vehicle is far from complete, but an important transformation has begun. It has been stripped, cleaned, documented, sandblasted, protected, and given its proper finish. Parts are being gathered, questions are being answered, and new clues continue to emerge.

Ghosts of the Battlefield is committed to seeing this restoration through to completion.

When finished, it will stand beside our restored Fast Attack Vehicle and the other vehicles in our growing museum collection. Together, they will tell two closely connected stories: one about the pursuit of speed and mobility, and another about the effort to remove American servicemen from the most dangerous places on the battlefield.

For decades, this vehicle’s identity was buried beneath corrosion, old paint, and time.

Now, serial number 63 is beginning its return.
